Since 2011 · Proven on Production Lines in 30+ Countries

PCB Drilling Consumables
Manufacturer & Supplier

Backup boards, aluminum entry sheets, coated lubricant aluminum and back-drill sheets — from one source operating a certified ISO 9001 quality management system. Consistent quality, simplified logistics, real production data from 30+ countries.

YUESHAN PCB has manufactured PCB drilling consumables since 2011 under a certified ISO 9001 quality management system, supplying backup boards, aluminum entry sheets, coated lubricant aluminum and back-drill sheets to fabricators in 30+ countries. Our one-supplier model cuts drill breakage up to 65% on HDI lines, reduces warp scrap about 80%, and lifts throughput up to 50% via 4-panel stacking.

Explore Products → Get a Quote →
✓ ISO 9001 certified quality system ✓ REACH · RoHS documentation on request ✓ 12-month quality warranty ✓ 5–7 days sample dispatch
-65%
Drill breakage, HDI lines →
-80%
Scrap from board warp →
+50%
Throughput, higher stack →
-22%
Cost vs trad. melamine →
Our Product Lines

Four Consumable Lines, One Supply Chain

Each product line is engineered to solve a specific drilling problem — not just deliver material. Choose by your board type, hole size and yield target.

01

PCB Backup Boards

Eliminate exit burrs and drill breakage. Flatness ≤0.10mm guaranteed. Stack up to 4 panels per hit for +50% throughput.

Explore →
02

Aluminum Entry Boards

Burr-free drilling for standard vias. 0.18 ±0.015 mm plain entry sheets, oil-free surface — no panel contamination, no extra cleaning.

PCB Aluminum Entry Board & Lubricant Entry Sheet →
03

Lubricant & Coated Aluminum

Cool the bit by 30%. Reduce breakage on micro-vias below Ø0.15mm. Thermally stable Coated alternative at competitive cost.

Lubricant-Coated Aluminum Entry Board →
04

Back-drill Aluminum

Eliminate stub length variation on 5G & server backplanes. One-piece seamless design with retained edge — no repositioning between passes.

Back-Drill Aluminum HW600/HW900 →
Real Results

Measurable Improvements on Real Production Lines

These aren't lab numbers — they're field results from PCB manufacturers running YUESHAN materials on their HDI, multilayer and back-drill lines.

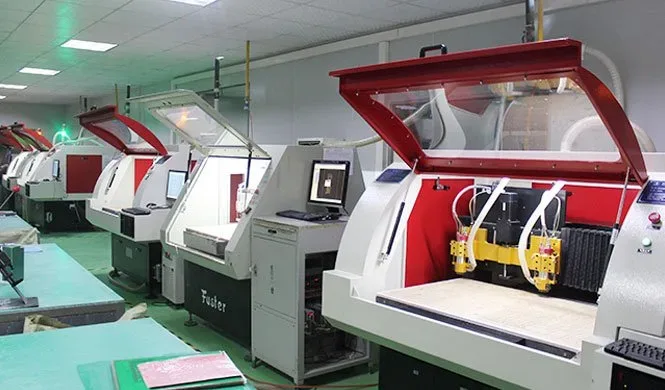

Indian HDI manufacturer backup board
HDI Manufacturing

-65% Drill Breakage

An Indian HDI manufacturer switched to YUESHAN HDF 880 + UV Melamine. Drill breakage dropped from 2.3% to 0.8%. Scrap from warpage fell 80%. Stack height went from 2 to 3 panels.

Read full case study →

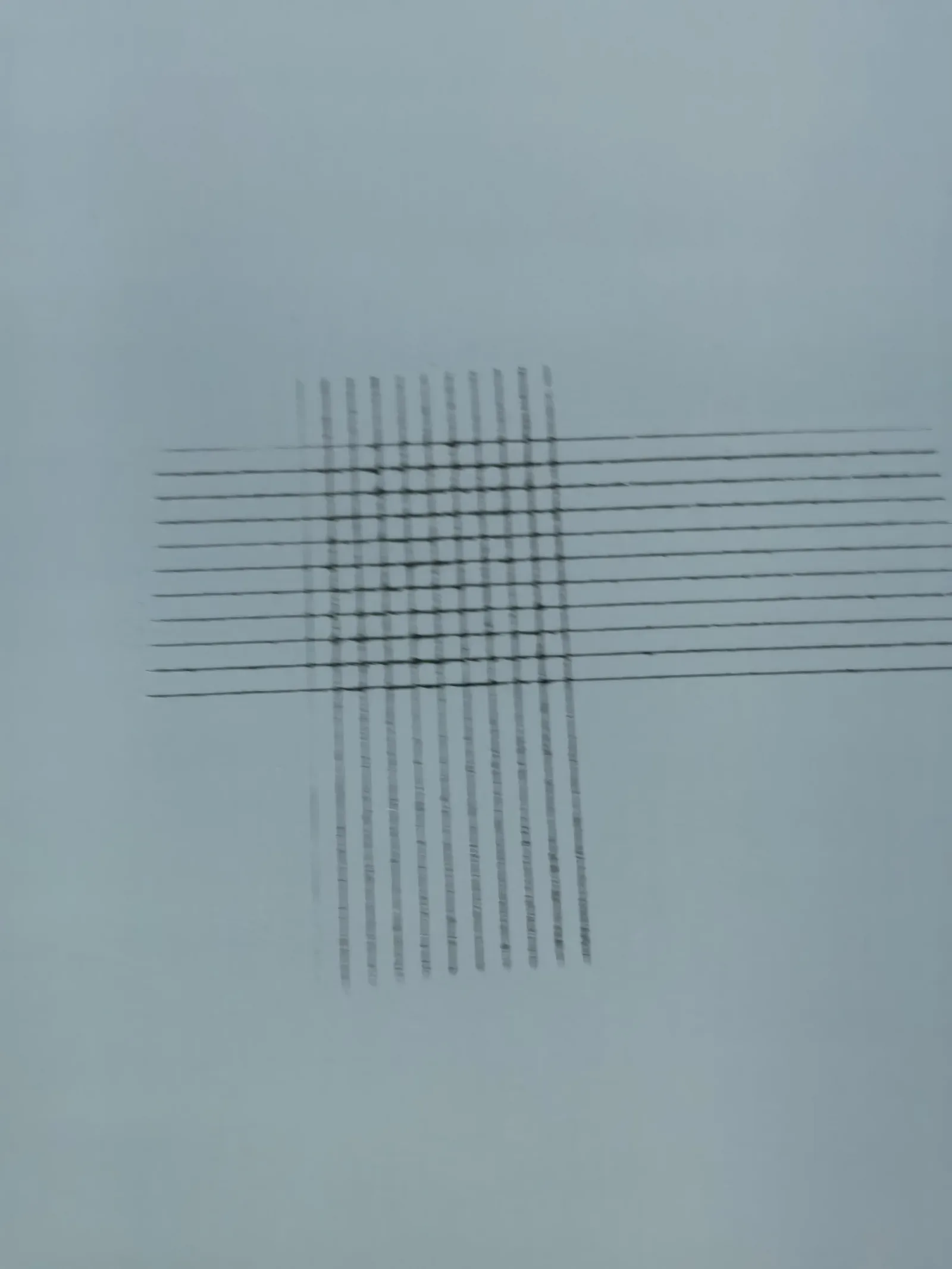

UV Melamine 950 backup board
Cost Optimization

-22% Cost, Same Hardness

UV Melamine 950 delivers equivalent hardness (83±3 HD) and density (980 kg/m³) to traditional melamine laminate — at approximately 22% lower cost. Proven on HDI and IC substrate micro-vias.

View product details →

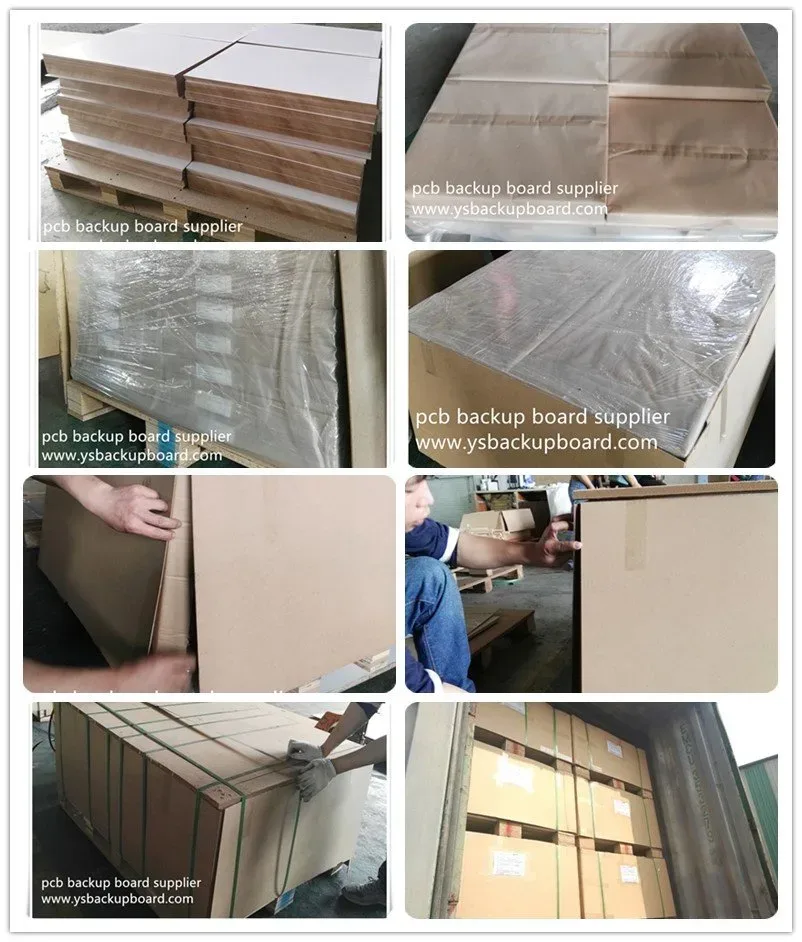

Bangladesh PCB manufacturer supply
Supply Partnership

8+ Years Continuous Supply

A Bangladesh electronics maker has relied on YUESHAN for HDF and UV Melamine backup boards since 2018 — through procurement pauses, market shifts and a successful win-back recovery.

Read the story →
Signature Solutions

Engineered for the Toughest Drilling Jobs

Two flagship lines that solve the failures most lines fight: exit burrs, drill wear and stub scatter.

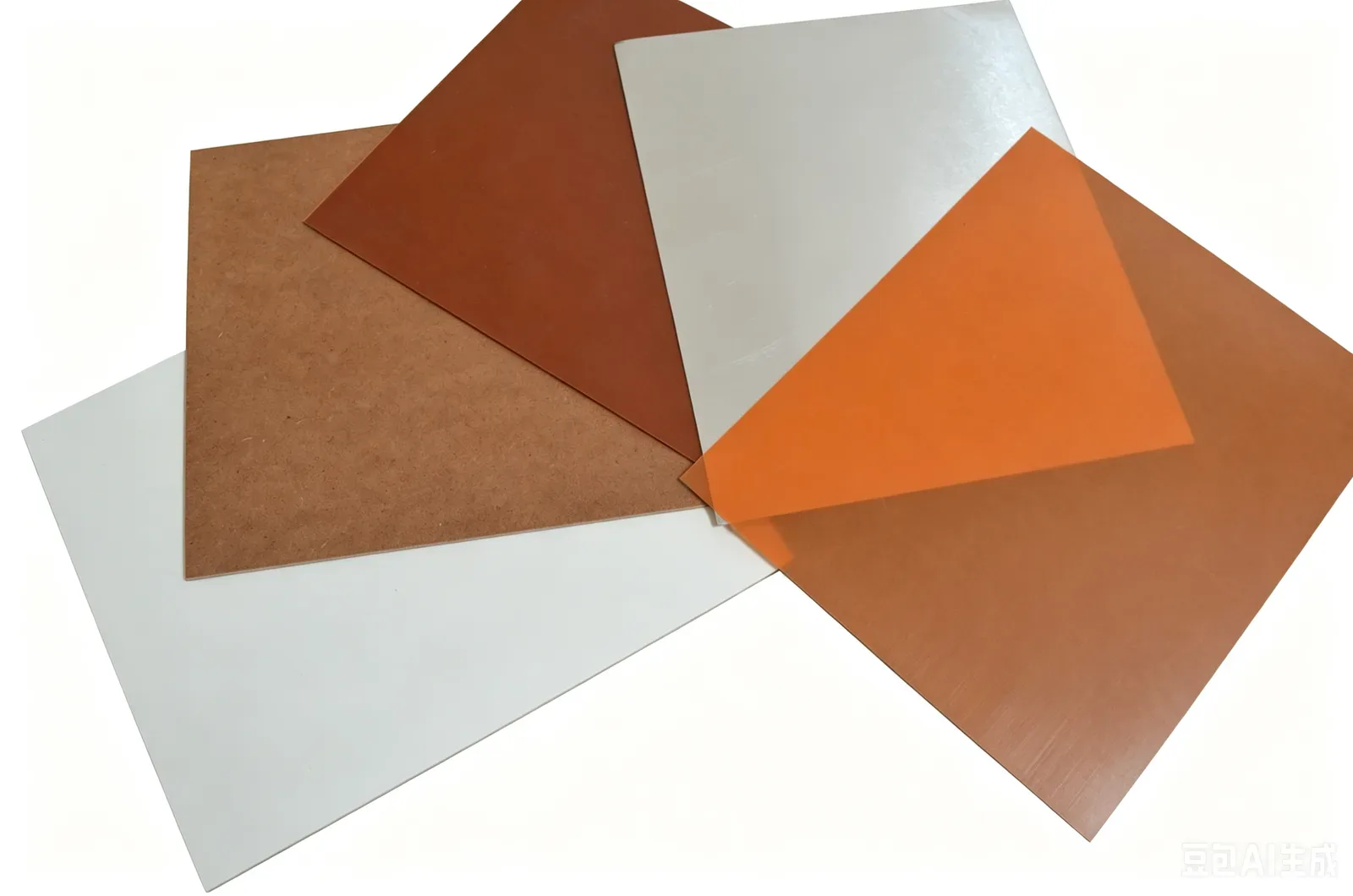

YUESHAN PCB backup boards
Backup Board Line

HDF · UV Melamine · Phenolic PHE

The support layer beneath your panel decides whether holes come out clean or burred. Our graded backup boards hold exit burr to ≤0.05 mm and keep flatness within ≤0.10 mm.

  • ▸ Hardness 70→90 HD across the range
  • ▸ Density tolerance tight at ±30 kg/m³
  • ▸ Raise stack height 2×→4 layers per hit
  • ▸ Proven on HDI, multilayer & IC substrates
View Backup Boards →

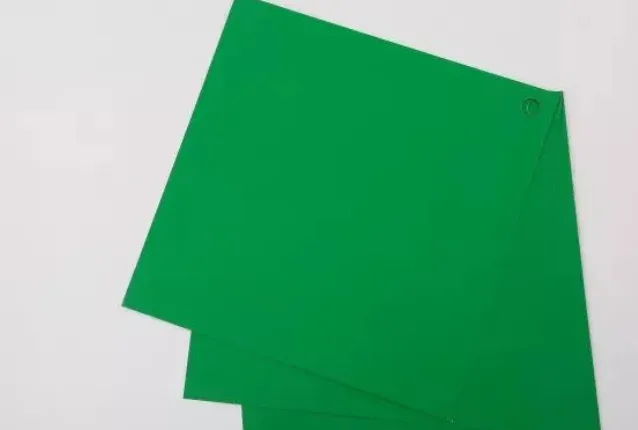

YUESHAN coated lubricant aluminum entry sheet
Coated Aluminum Line

Thermoset Lubricant & L.C.O Alternative

A resin-lubricant film on the drill-entry face cools and lubricates the bit, cuts wear and tightens hole-position accuracy — especially for HDI, BGA and IC-substrate microvias.

  • ▸ 220°C thermoset stability, no melt rings
  • ▸ Engineered as an leading coated-aluminum alternative
  • ▸ Aluminum base ≤0.10 mm for sub-Ø0.15 mm vias
  • ▸ Stable CpK, uniform film thickness
View Coated Aluminum →
Best Sellers

Our Most-Ordered Products

The grades PCB manufacturers re-order month after month — proven in production across three continents.

PCB Backup Boards
Backup Board

PCB Backup Boards

HDF, Melamine & Phenolic grades engineered for clean holes

View Details →

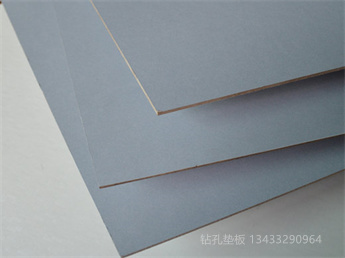

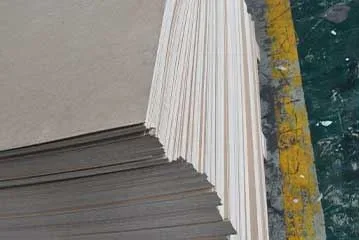

HDF Backup Board
HDF

HDF Backup Board

840 / 880 / 950 grades — high-density fiber for clean holes

HDF PCB Backup Board →

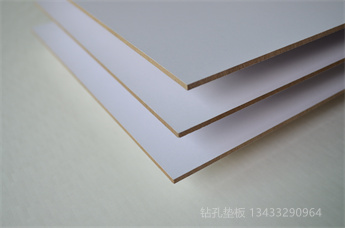

Melamine Backup Board
Melamine

Melamine Backup Board

Laminate grades for stable, low-dust drilling

Melamine PCB Backup Board →
UV Melamine Backup Board
UV Melamine

UV Melamine Backup Board

840 / 880 / 950 — UV-resistant surface, anti-stick

UV Melamine PCB Backup Board →

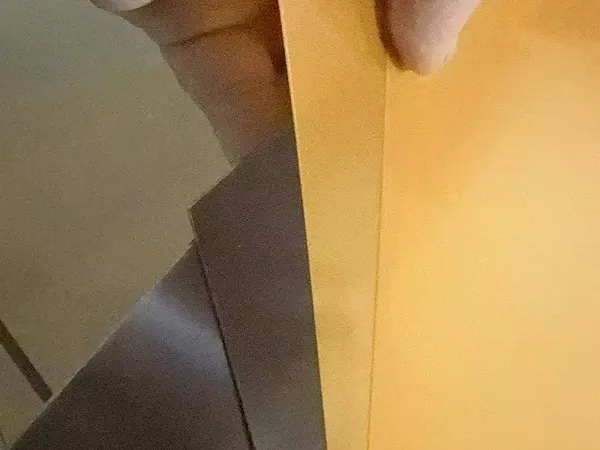

Phenolic Backup Board
Phenolic

Phenolic Backup Board

PHE grade — heat-resistant backup for dense boards

Phenolic PCB Backup Board →

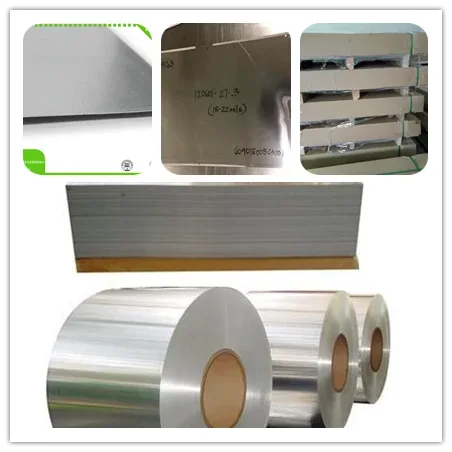

Aluminum Entry Boards
Entry Board

Aluminum Entry Boards

1100 H18 full-hard aluminum (0.15–0.20 mm)

Aluminum Entry Boards
Lubricant & Coated Aluminum
Lubricant Aluminum

Lubricant & Coated Aluminum

Thermoset 220°C & water-soluble for HDI/BGA/IC

Lubricant & Coated Aluminum
Back-drill Aluminum
Back-drill

Back-drill Aluminum

One-piece coated (0.16–0.19 mm) for 5G & servers

Back-drill Aluminum
PCB drilling material quality inspection
Thickness and hardness measurementHardness & Density
Laboratory quality testingLab Testing
Final packaging inspectionPackaging Check
Quality Assurance

Every Batch Tested Before Dispatch

Our products are manufactured in compliance with industrial quality standards using highly qualitative raw materials. Every batch undergoes stringent checks for hardness, density, thickness, flatness, moisture, visual defects and packaging integrity before dispatch.

  • Hardness ±5 HD (every batch)
  • Density ±30 kg/m³ (every batch)
  • Flatness ≤0.10 mm guaranteed
  • Thickness ±0.10 mm across panel
  • Compliance REACH · RoHS documentation
Packed cartons in warehouse Container ship with colorful containers

Export-Grade Packing & Full-Container Loading

  • Pallet size — 37" / 41" / 43" × 49"
  • Per pallet — up to 200 pcs, stretch-wrapped
  • 20GP container — ~24 pallets per load
  • Tracking — Container seal + CN number provided
Request a Shipping Quote →
Why YUESHAN

A Partner, Not Just a Supplier

🔬

Full Technical Data

Every product ships with TDS & MSDS. Density tolerance ±30 kg/m³, flatness ≤0.10 mm.

🌍

Global Delivery

Serving PCB makers in India, Japan, Korea, Europe, Middle East & Russia since 2011.

🛡️

Quality Warranty

Certified ISO 9001 quality management system, material declarations on request, 12-month warranty.

⚙️

One-Stop Supply

Backup, entry & coated aluminum from one source — consistent quality, simpler logistics.

Global Presence

Trusted on Production Lines Worldwide

From HDI houses in India to substrate makers across Europe — our materials run on real production lines, every day.

🇮🇳 India 🇯🇵 Japan 🇷🇺 Russia 🇸🇦 Saudi Arabia 🇧🇩 Bangladesh 🇪🇺 Europe

Ready to Calculate Your Cost Per Good Hole?

We'll send you a free sample kit of the right material stack for your boards — plus TDS/MSDS and a side-by-side benchmark against your current supplier. No cost, no obligation.

For the numbers behind those choices, the PCB calculator suite covers 33 tools for stackup, drilling cost, entry thickness and backup board selection — all runnable in the browser.

Compare Us Against Your Current Supplier →
✓ Free sample kit ✓ Side-by-side benchmark data ✓ Full TDS & MSDS documentation ✓ Engineering support in English & Chinese
WhatsApp: +86 13433290964 [email protected]
